SOLARFORCE M6 CREE XM-L (T6)
This was received from www.Solarforce-sales.com
and I must admit that it was love at first sight when I
saw the new M6 photos.
This did look like a compact but well balanced
flashlight with a tactical look and highly detailed with a
stainless steel front and rear bezel,
but would it live up to my expectations?
Before I go into my review, I have listed the
Manufacturer technical data sheet
M6
Features:
-
Uses
CREE XM-L (T6) high power output LED
-
Body
made of T6061 T6 aluminum alloy in HAIII (dull black)
finish with strengthened anti-wearing and corrosion
features
-
Aluminum
alloy reflector with mirror-like reflective surface
for maximal reflectivity and focusing power
-
Strengthened
glass lens with anti-reflective coating for ultra high
transparency and light transmittance
-
Forward
click tail-cap switch
-
Water-proof
(Standard IPX-8)
-
Current-regulated
and stable output with input voltage range of 2.7- 9V
-
Battery
type: 18650 x 1 or 2 or CR123A x 2 (Note: the
flashlight will become hot with CR123A batteries)
-
Special
head-controlled 2-level output (and strobe mode)
design
n
Head
in tightened position: high output (100%)
n
Head
in loosen position: low output - strobe - repeat
(press slightly the tail-cap switch or re-activate the
flashlight to switch between the two modes)
n
When
the flashlight is turned off for ?? 3 sec, it will
remember the lastly used output mode and go to that
mode direct when being turned on again
-
Lumen
rating and runtime (with 18650 x 1)
n
100%:
550 lumens, 110 minutes
n
10%:
55 lumens, 20 hours
-
Low
battery voltage alert function: when the overall input
voltage drops to 2.8V, the light will automatically
switch to the candle-mode (8 lumens)
-
Built-in
reversed battery polarity circuit protection
-
Length
x diameter (head, battery tube, tail-cap): 142 x 36 x
25.4 x 29 mm
-
Weight
(without batteries): 142 g
Overall first impression:
The M6 come in a box with a magnetic
lid similar to many other Chinese manufacturer, inside the
box is a foam insert with cut out for the M6 and an other
one for a small bag containing spares: "o"
rings, a GDI switch boot and a high quality paracord
lanyard with a clip and a small split ring. The light
purchased was flawless, with nice sharp white logo and
writing on the head which has a rear cooling fins. These
are well made with no sharp edges and due to the
relatively short size of the light assist in your grip.
The light is a fraction bigger and longer that my L2P and
sit very nicely in my hand. This is my first light with
the square knurling and must admit is very pleasing and

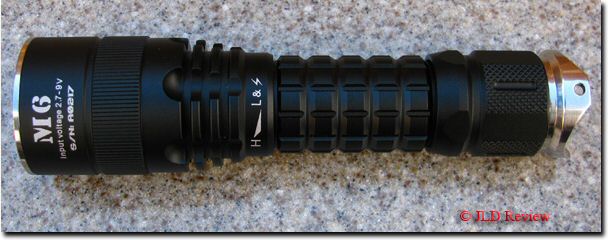

has a positive feel. The rear stainless steel bezel is
beautifully manufactured and engraved with www.solarforce.hk.
The rear bezel has very smooth edges and allow ample room
to operate the forward clicky switch. It is also wider
than the body giving a very firm base when you tail stand
the light.
Looking good so far, but I soon as I
laid the flashlight down, it started rolling away from me!
After more study of the M6 I realised that they was no
Anti Rolling Device incorporated into the flashlight. Not
a major problem as the addition of Solarforce SS Lanyard
Ring, will stop it rolling away, but I do think that this
type of flashlight should have one build into it. (the
easiest way to rectify this omission would be to include
the SS Lanyard Ring in the accessory pack). The light was
taken apart, and the single o ring on either side of the
body will need lubing. The rear stainless bezel can be
unscrewed living the tail switch with an exposed thread,
but with a protruding switch which could be appreciated by
gun owners when the light is used as a weapon light. All
my 18650 including flat top AW batteries fitted without
any problems in the battery tube.
Then the light was switch on, again
here no disappointment, nice wide beam of light coming out
with a very large central hot spot, the throw is also good
for an XML, see the photos taken in my garden.
The lower mode about 55 lumens was
achieved by rotating the head about 1 /8 of a turn towards
the right. This level still give you plenty of workable
light and according to Solarforce has a run time of 20
hours. From this setting you can access the strobe mode
via the cliky. I think like many of you, I will ask the
question WHY? I do not know many flashlight enthusiast who
like to have a strobe on their Flashlight!
A low setting 10 lumen, would have been much more useful
to everyone!. A feature that I like and have now
experienced is the low battery alert function. I let the
M6 run for another 3mn into candle mode and then
decided to turn it off, not wanting to over drain
the battery.
This is a good safety feature as you know you will not be
left in the dark without prior warning!
In conclusion:
For: Stunning look and design, quality feel,
compact, good output and run time, low battery warning,
tail stand, removable rear stainless steel bezel, circuit
protection, broad voltage.
Against: no anti roll system, unable to
upgrade the drop-in (?), interface lacking a low setting,
(from personal preference, I would have preferred 3 modes
100%, 55%, 10% or maybe a 4 mode, ie high/medium on first
setting and may be low/ flash on second setting), a bit on
the expensive side for two modes and a strobe XML from
Solarforce.
Living with the Solarforce M6
I have done a mountain bike night trail
ride with it and the throw and flood pattern is much
better than the L2/L2P series fitted with XM-L 6, actually
this quite well suited for biking, you get quite a
powerful hotspot in the distance with a wide light aurora
in between, the low 55 lumen (manufacturer data) is ok for
wide trail riding where loads of light is not required,
the rotating head mode changing is just not friendly for
cycling and I did not experience unexpected switching of
modes while rough riding. What I found while using
my light around the house is that it has the annoying
habit of going in strobe mode from the low mode when the
light is positioned in candle mode heavily on firm
surface, this does not happen with my L2P (I am unsure if
this is a fault with my light or a characteristic of this
model), I also found on mine that the rear chrome bezel
had a tendency to loosen itself, this was sorted by
fitting a thin "o" ring to take up the thread
slack and act as a thread lock.
In my mind, the M6 would also have benefited of a third
lower mode, the 55 lumens is a good choice but you
sometime need a little less!
I can not get close to the manufacturer run time on high,
my test are on continuous under cooling fan with Ultrafire
2600 mAh
2 years old batteries.
What I got is still very impressive.
The first 20mn were at a constant 34400 Lux (in my home
made integration sphere) there after
a gradual brightness drop, the 50% of initial output
(17200 lux) was achieved at 100mn then the candle light
low power safety system kicked in at108mn giving 300 lux,
the light was turned off by myself at 150mn, but I think
this will probably go onto the 180mn: ie the 3 hours
advertised run time.
So in short:
Full output to 50% in 1hour 40mn and loads of candle light
time!
So Am I still loving it?
Yes! This feels and look quality with still a fairly good output
versus run time!
|
